Hybrid Inverter 48V 5500W 120V/230V Split Phase Solar Inverter with 80A MPPT Solar Charge Controller for Off-Grid Areas Home Office

InverterRated power: 5500VA/5500W Input voltage: 230VAC Optional voltage range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances) Frequency range: 50 Hz/60 Hz (automatically set) Output value AC voltage regulation (battery mode): 230VAC ±5% Surge power: 7000VA Efficiency (peak value): 93% Conversion time: 10 ms (For Personal Computers); 20 ms (For home Appliances) Waveform: pure sine wave Battery & AC charger Battery voltage48 VDC Floating charging voltage 54VDC Overcharge protection: 63VDC Maximum charging current: 80A Solar charging (adjustable): Charging current: 50A Maximum photovoltaic array power: 5000W/6000W Maximum open circuit voltage of photovoltaic array: 500 VDC Maximum charging current: 100A Standby power consumption: 2w Communication interface: USB/RS232/GPRS/WIFI Working environment Humidity: 5% to 95% relative humidity (non-condensing) Working temperature: 0℃-55℃ Storage temperature: 15℃-60℃

• Inverter
• 【Inverter/Charger】: All-in-one inverter pure sine wave. It features an uninterruptible power supply making it ideal for applications where power is unreliable intermittent or expensive to maintain. Ideal for remote areas holiday homes cabins and cabins) as well as mobile off-grid applications .
• 【High frequency inverter integrated machine】: MPPT pure sine wave inverter 5.5KW MPPT 100A 500VDC PV input 220VAC 48VDC high frequency integrated hybrid inverter . Operates without batteries (even without batteries can generate power directly from PV to provide load even higher efficiency).
• 【Lcd Real-time Display】The LCD screen can display real-time usage status (such as working temperature battery power output voltage equipment performance protection functions etc.) to facilitate monitoring of usage.
• 【Safety Protection】Mains independent power inverter with full protection overload/over temperature/short circuit protection. It is the ideal inverter for small PV systems or individually for small houses indoors and outdoors.

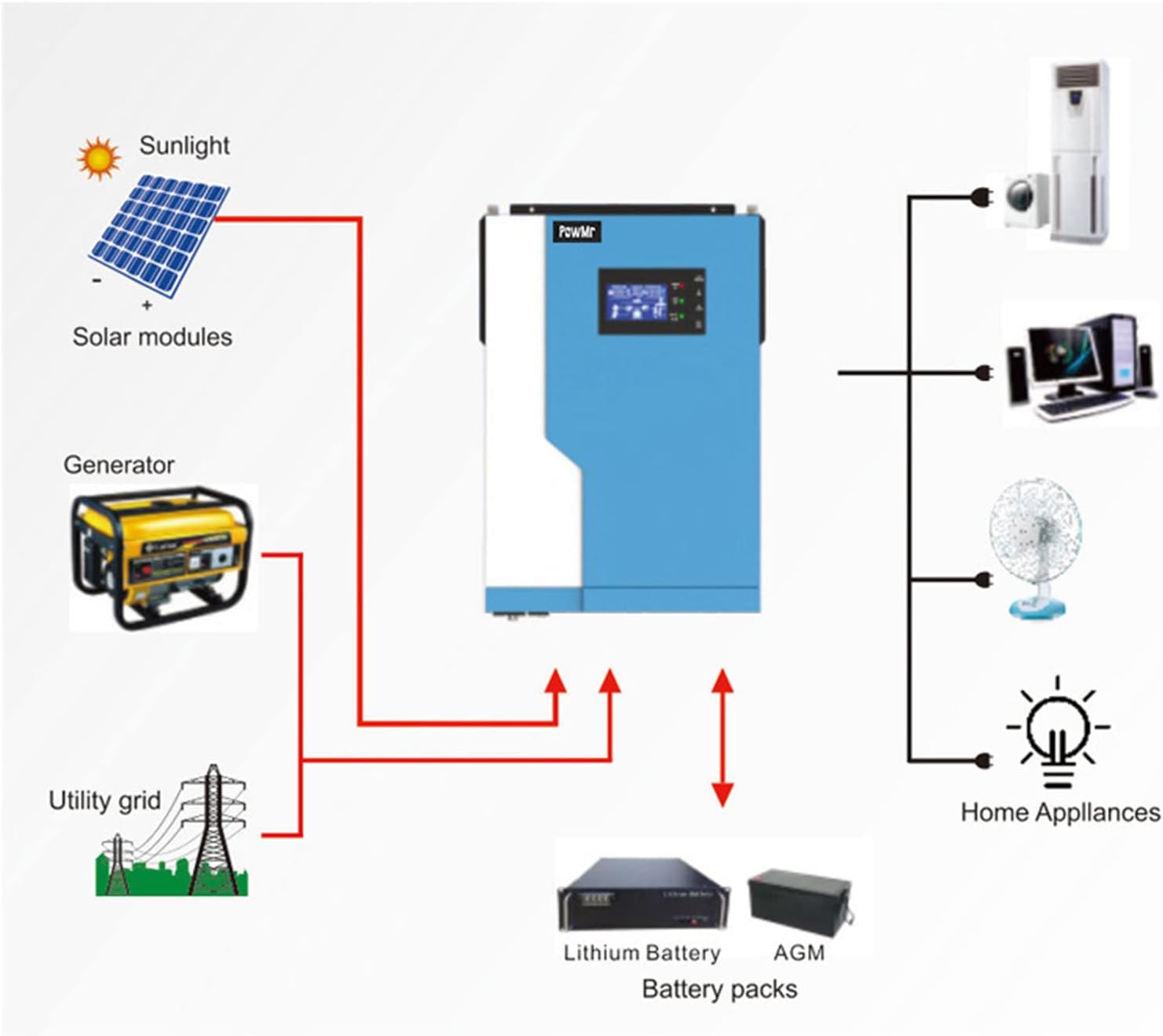

• 【Multi-scene Application】MPPT inverter pure sine wave is used for RV camping boat family emergency etc. Access to a variety of home and office loads including ovens rice cookers lights TVs fans and other AC loads.
