GwliUni 4PCS Fiber Optic Cable Splitter with 1 to 2 Distribution Channel 50:50 Ratio Wiring Coupler for GPON,FTTH,CATV System (SC-UPC 1 to 2)
Product details
| Management number | 217006437 | Release Date | 2026/04/19 | List Price | $10.00 | Model Number | 217006437 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

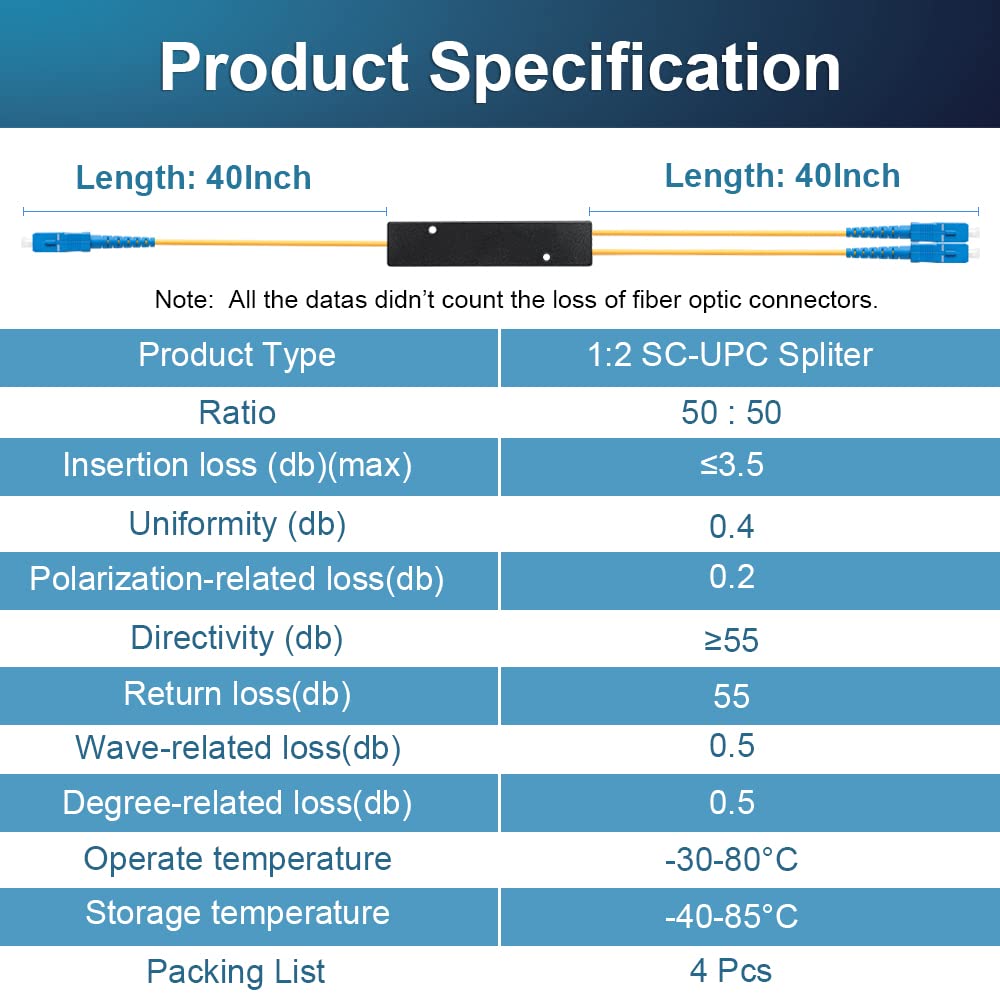

【Product Description】 -All the data were tested with high-precision instruments. -The products are compact with beautiful appearance. It's spectral uniformity is ideal for passive optical network. - The loss is insensitive to light wavelength and can meet the transmission needs of different wavelength. 【Product Detail】 Product Type1:2 SC-UPC Splitter Splitter Ratio: 50:50 Insertion loss (db)(max):3.5 Uniformity (db):0.4 Polarization-related loss(db):0.2 Directivity (db):≥55 Return loss(db):55 Wave-related loss(db):0.5 Degree-related loss(db):0.5 Operate temperature:-30-80°C Storage temperature:-40-85°C Note: All the datas didn’t count the loss of fiber optic connectors.
- 【Main Parameter】1 to 2 Fiber optical splitter with SC-UPC plug, Ratio 50:50, 1310nm / 1550nm operate wavelength, -30 to +80°C operate temperature ranges
- 【Uniform Distribution】 The SC splitter distribution ratio is 50 : 50, which distributes signals evenly to each user with strong directionality, uniform distribution and stable transmission.
- 【ABS Shell】 ABS shell has good capacity to resist impact, heat and low temperature, which can much extend the service life of the product.
- 【PVC Sheath】The fiber sheath of splitter uses environmental protection PVC material and has strong flame retardant

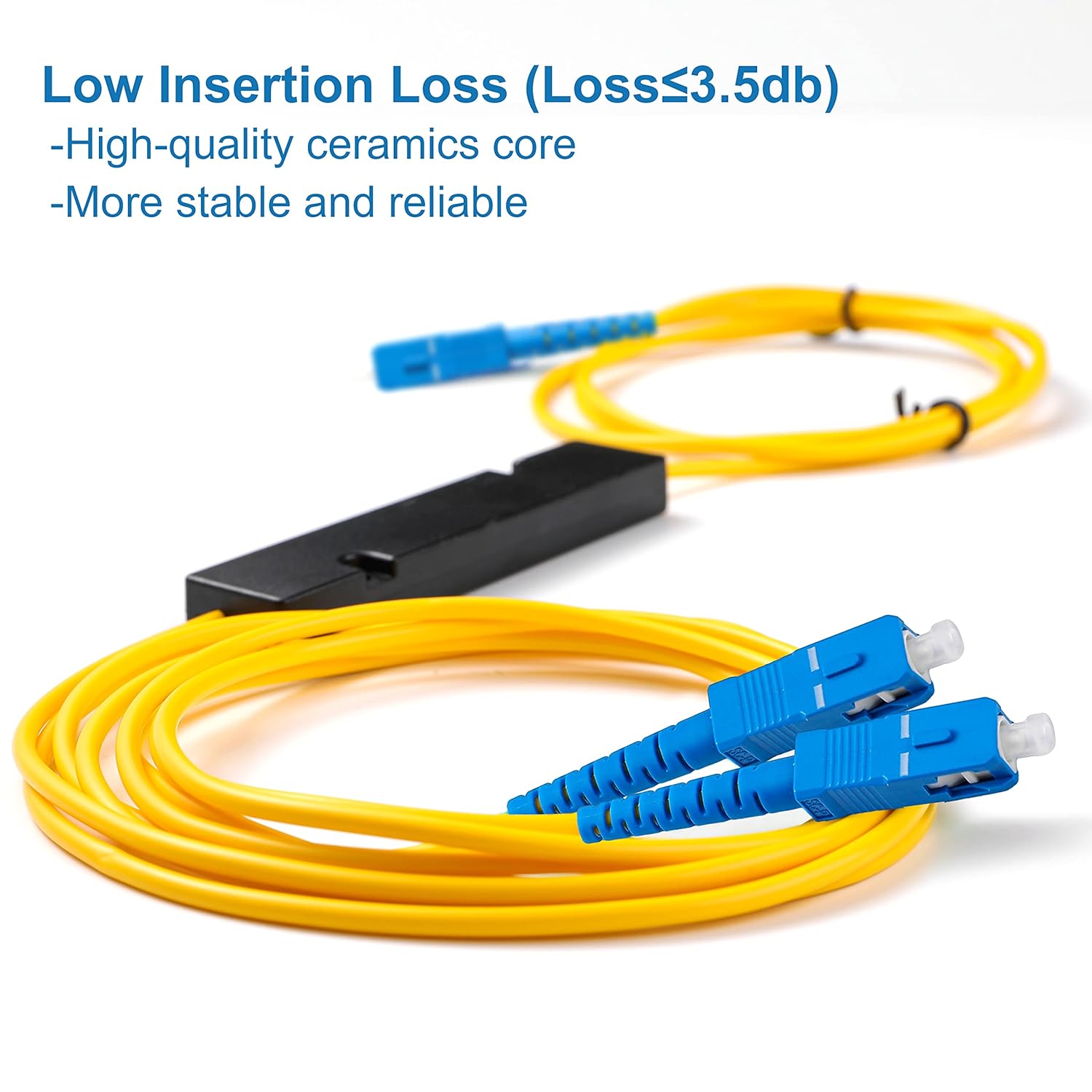

- 【Low Insertion Loss and Good Directivity】The splitter uses a high-quality ceramics core with low insertion loss(loss≤3.5db) and Directivity≥55dB
| UPC | 755334207594 |
|---|---|
| Color | Yellow |
| Model | SC-1D2-4 |
| Brand Name | GwliUni |
| Cable Type | Fiber Optic |
| Item Shape | Round |
| Model Name | 1D2 |
| Unit Count | 1 Count |
| Item Weight | 0.23 Kilograms |
| Manufacturer | GwliUni |
| Connector Type | FC, SC |
| Outer Material | ABS, PVC |
| Number of Items | 4 |
| Connector Gender | Male-to-Male |
| Compatible Devices | Optical Line Terminal (OLT), Optical Network Terminal (ONT), Set-top Box (STB) |
| Included Components | 4PCS Splitters |
| Indoor Outdoor Usage | Indoor |
| Customer Package Type | Rigid Box |
| Compatible Phone Models | No Compatible Phone Models |
| Connectivity Technology | FC, SC |

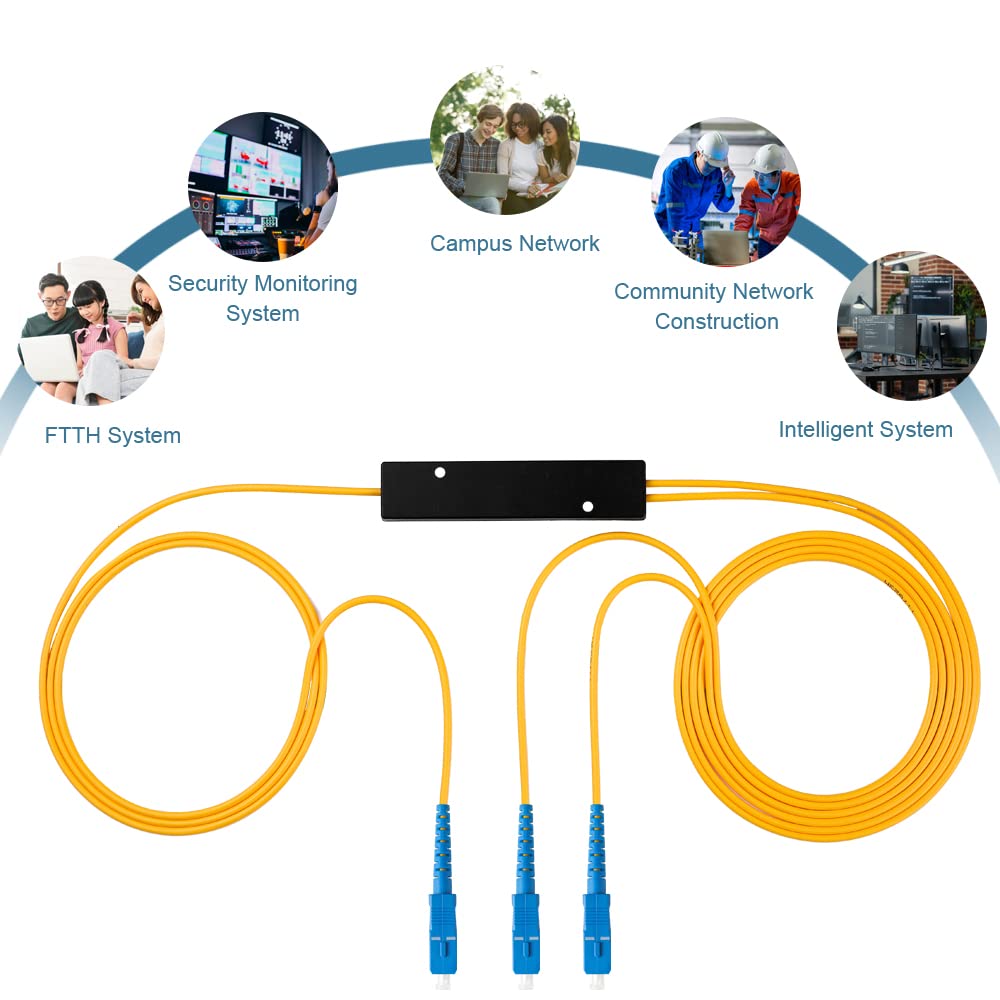

| Recommended Uses For Product | Network systems (GPON, FTTH, CATV) |
| Other Special Features of the Product | Data Transfer |
