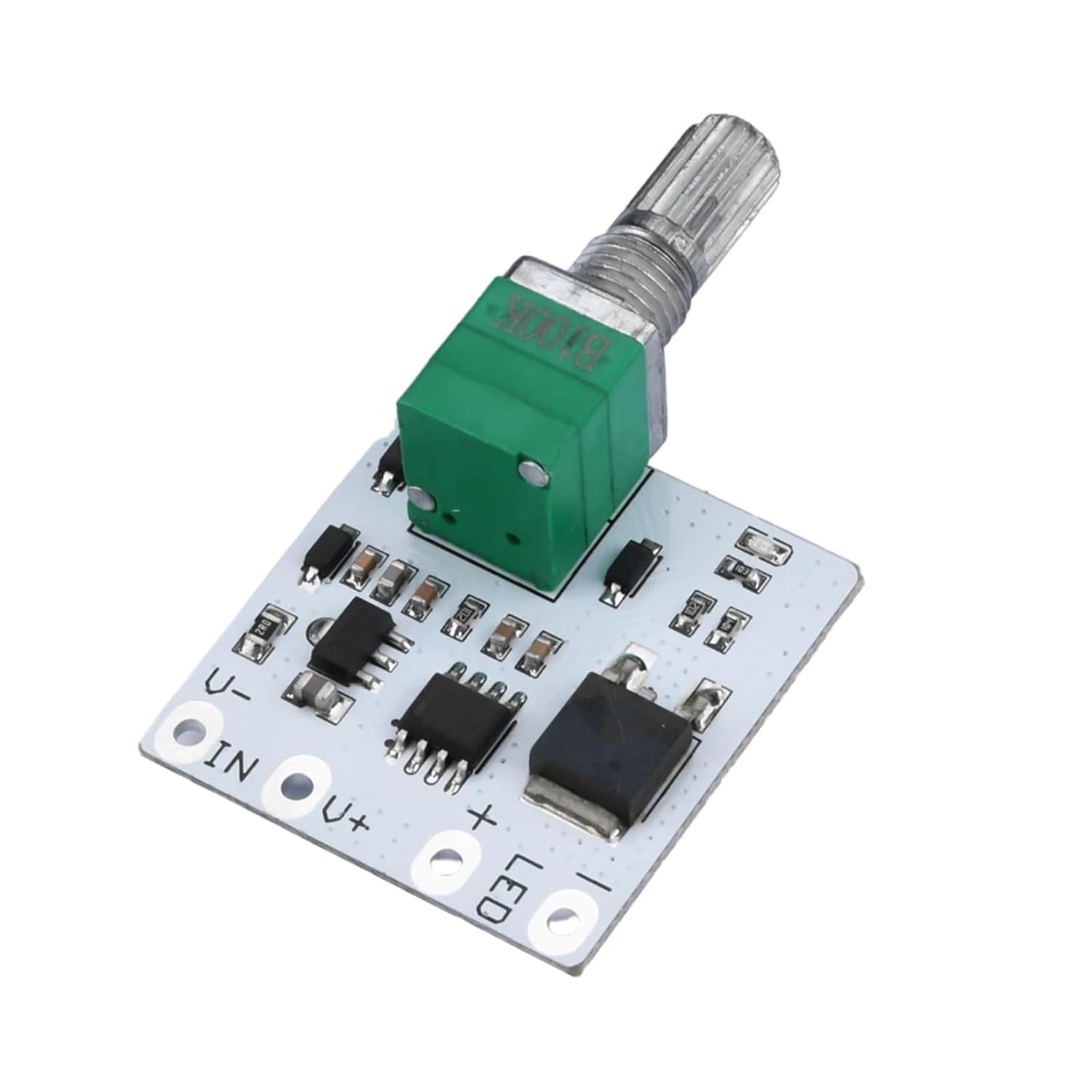

DC3.7V-24V LED Driver PWM dimming Module Constant Voltage Light Strip Table lamp stepless knob Potentiometer Circuit Control Board(Square)
Product details
| Management number | 213661604 | Release Date | 2026/04/12 | List Price | $13.36 | Model Number | 213661604 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Outlet & Switch CombosDC3.7V-24V LED driver PWM dimming module constant voltage light strip table lamp stepless knob potentiometer circuit control board2. Exquisite and compact appearance, smooth dimming, no flicker, and high power.3. Suitable for live broadcast fill light small desk lamp light strip advertising light box.4. Constant voltage type, with switch, stepless adjustment, 0-100% range adjustable.rectangle:Type: LED constant voltage dimmerPower supply voltage: DC DC3.7V-24V applicableOutput voltage: equal to the input voltage (output voltage equals input voltage)Load power: 4A useStandby power consumption: 0 power consumption in standby after turning off the knobWorking type: Constant voltage and non-constant current loads must have resistor current limitingsquare:Type: DC high-power LED dimming moduleInput voltage: input DC 6-24VOutput voltage: equivalent to input voltageLoad current: Max 5ALoad power: maximum 120W (voltage × current = power)Dimming range: 0-100% stepless adjustment, no flickerWorking mode: constant voltage, with switch functionparameter:1. The module has input reverse connection protection, but no output short circuit protection. Please check whether the cables are connected correctly before powering on the module.2. The input and output voltage difference of the module should not be higher than 3V, so that the dimming effect and efficiency are the best.For example:Input 9V, with 2 strings of LEDs (the light source must be limited by the string resistance)Input 12V, with 3 strings of LEDs (the light source must be limited by the string resistance)Input 24V, with 6-7 strings of LEDs (the light source must be limited by the string resistance)manifest:Dimming module X1AccessoriesX2=========Features: DC3.7V-24V LED driver PWM dimming moduleModel: DC3.7V-24V LED driver PWM dimming moduleCertification: CEMaterial: plastic：DC3.7V-24V LED driver PWM dimming modulemaximum. Load power supply: DC3.7V-24V LED driver PWM dimming moduleOrigin: Mainland ChinaProduct Type: Dimmer
- Outlet & Switch Combos
| Color | Square |
|---|---|
| Model | QTIWYXYS |
| Terminal | Blade |
| Brand Name | QTIWYXYS |
| Unit Count | 1.0 Count |
| Switch Type | Bipolar Transistor |
| Circuit Type | 1-way |
| Contact Type | Normally Closed |
| Manufacturer | QTIWYXYS |
| Mounting Type | DIN Rail Mount |
| Connector Type | Clamp |
| Current Rating | 1 Amps |
| Operation Mode | OFF-NONE-ON |
| Item Dimensions | 4.72 x 4.72 x 4.72 inches |
| Number of Items | 1 |
| Contact Material | Alloy Steel |
| Operating Voltage | 1 Kilovolts |
| Specification Met | UL |
| Number of Positions | 1 |
| Lower Temperature Rating | 1 Degrees Celsius |
| Upper Temperature Rating | 1 Degrees Celsius |
| International Protection Rating | IP00 |
