ALLOYWORKS CC833 Aluminum Radiator Compatible with 1966-1979 Ford F-100 F-150 F-250 F-350 1978-1979 Ford Bronco Truck Downflow Radiator, 4 Row Radiators, Shroud Fan Relay Kit, L6 V8 Chevy Engines Only

Vehicle Fitment:For 1966-1979 Ford F-Series & Bronco Truck Chevy EngineFor 1966-1979 Ford F100 F150 F250 F350 Bronco Truck Chevy EngineFit Chevy Engine Only!Radiator Details:Row: 4 Row Core;Material: Full AluminiumRadiator Cap: includedCore and Tank: All AluminumHigh Performance Racing Spec.Radiator Flow: DOWN FLOWCore Size: 18 8/9''H X 25 1/2''WOverall Size: 26 1/6''H X 29 1/3''WUpper Inlet 1 1/2" located on the Driver sideLower Outlet 1 3/4" located on the Passenger sideTransmission Oil Cooler: IncludedTransmission Oil Cooler Fitting Type: φ26*305*1/4NPT(T)Mounting Type: BRACKETTransmission: Automatic and Manual.Material: Full AluminiumCore and Tank: All AluminumHigh Performance Racing Spec.Radiator style: DownflowMounting Style: Screw-OnFit type: Vehicle SpecificCrafts: 100% Tig weldedDelivery: Local DeliveryFitment Type: Direct ReplacementPerformance: Up to 30%~45% more coolingPlacement on Vehicle: Engine CompartmentSurface Finish: Aircraft Grade Raw AluminumPetock Drain: OEM style brass petcock drainRadiator Cap: CNC machined filler neck and cap12" Fans Details:Volt: 12VMaximum Fan CFM: 1730 cfmFan Diameter (in): 12.050"(blade to blade)Thickness (in): 2.500"Number of Blades: 10 S-Type bladesMaximum Fan RPM: 2,250 rpmBlade Material: PlasticAmp Draw: 12.70 ampsThermostat Kit:Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.3/8" NPT thread-in brass probe included.Probe typically threads into radiator, water outlet or manifold.Thermostat Relay Kit Instructions：RED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.Gentle Hint:Parameters Meticulous Prior to Ordering.Pls compare the overall width with your original radiator.Professional installation is highly recommended! No Fitting Instructions Supplied!Please contact us for installation video or other any problem.

• ◆ [Vehicle Fitment] Replacement for 1966-1979 Ford F-Series Pickup Truck Chevy Engines; Replacement for 1966-1979 Ford Bronco F150 F250 F350 Pickup L6 V8 Chevy Engines;

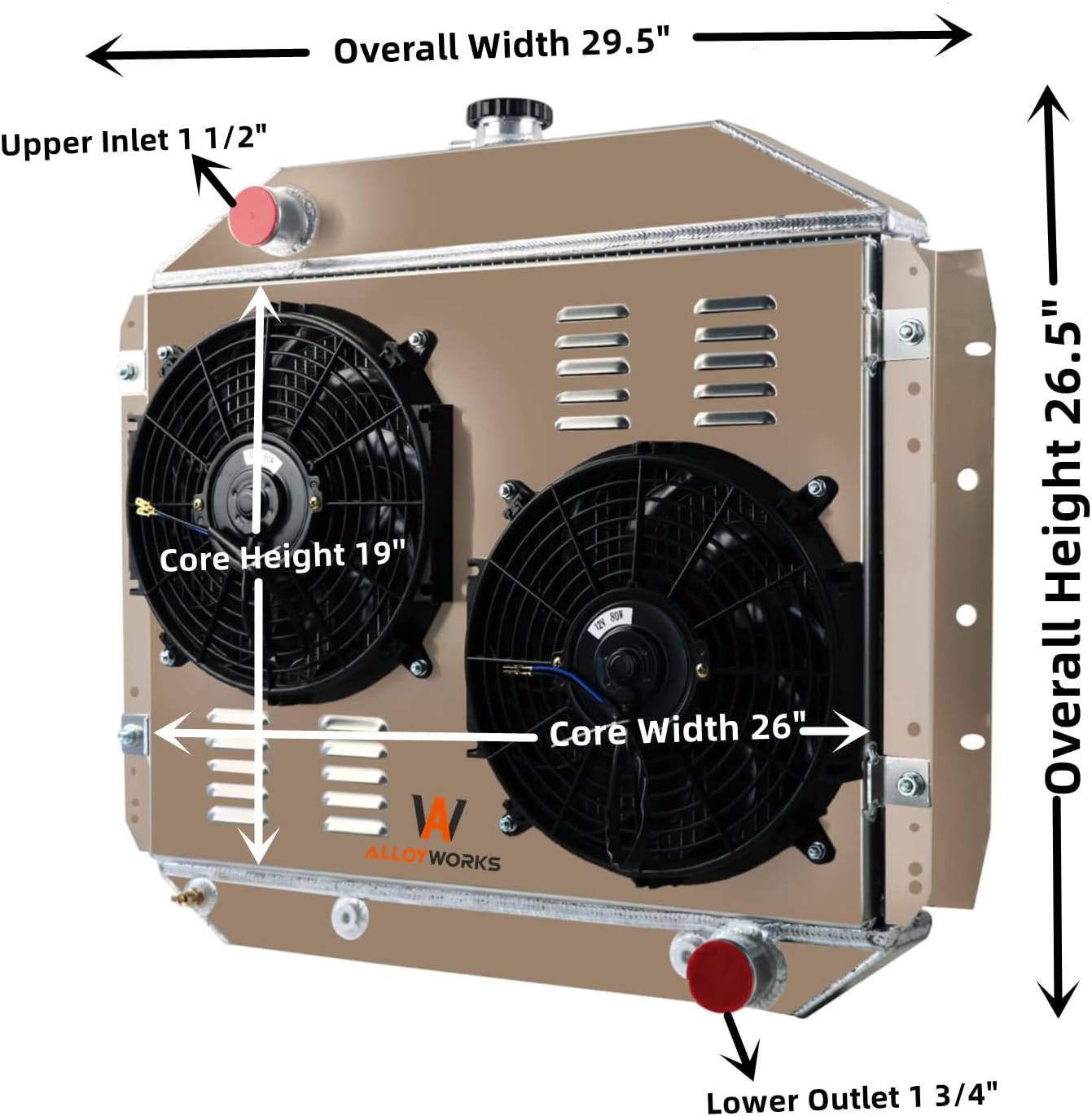

• ◆ [Dimensions] Core Size: 19'' x 26" x 2 3/4"; Overall Size: 26.5" x 29.5"; Upper Inlet 1 1/2" located on the Driver side; Lower Outlet 1 3/4" located on the Passenger side; Transmission Oil Cooler Fitting Type: 1/2-20 Straight Thread, G 1/4;
• ◆ [Premium Quality] Constructed with Aircraft AA5052 aluminum, this radiator is 100% welded and features brazed core technology with no epoxy. The high-quality aluminum core makes it a direct fit and built to last long. Before delivery, each radiator undergoes five checks in the production process and is pressure tested to ensure no leakage.
• ◆ [Cooling Feature] The full aluminum radiator is lightweight and high heat transferring aluminum features a tube and fin design,that dramatically increases surface area that enables the heat to dissipate more efficiently. It provides 30% more cooling capacity than a standard radiator.
• ◆ [Easy To Install] Brand-new radiator engineered and manufactured to meet original specifications for quick installation. CNC turret punch machine ensure the accuracy of radiator size. No Drilling or Modifications Needed for Installation.
